Stadium Lighting solution

Stadium Lighting solution

Mingfeng provides proven and industry-leading lighting systems with high power rates, high brightness, and wide lighting ranges. These systems are suitable for both outdoor and indoor sports stadiums. Due to variable weather conditions, outdoor sports stadiums need waterproof and lightning resistant features. To meet these requirements, we have developed a series of high-power floodlights. We can customize our products according to the size and layout of the venue.

We can design different LED lighting products according to different needs.

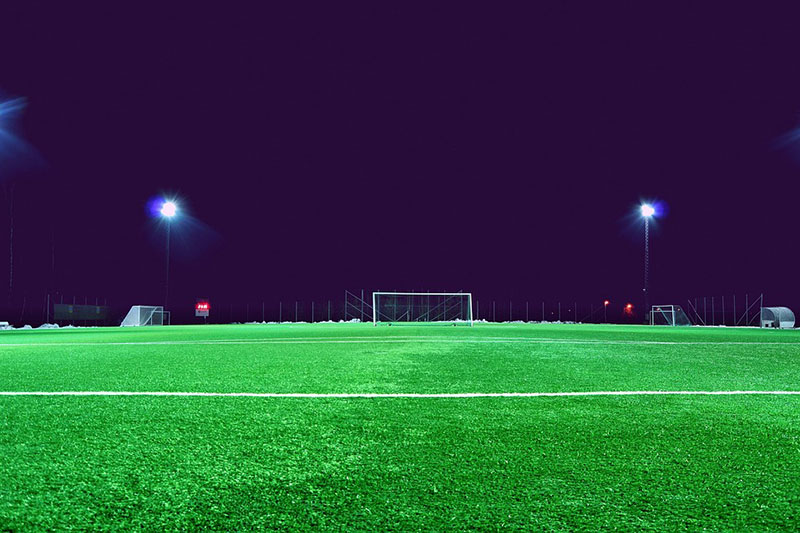

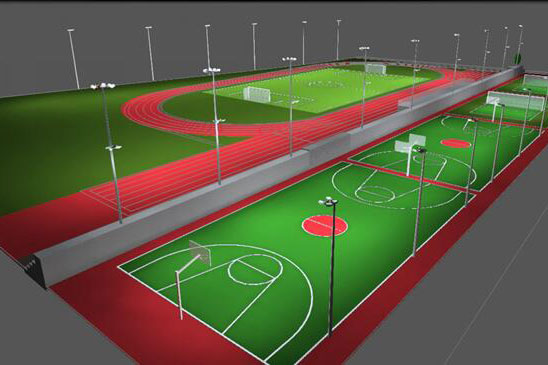

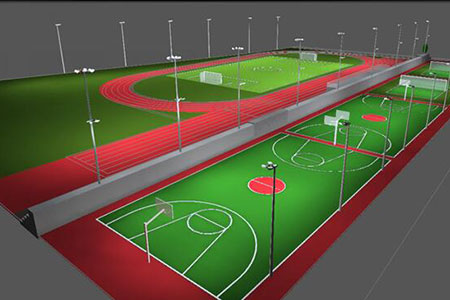

The outdoor sport yard lighting
Stadium Lighting solution
Stadium Lighting solution Stadium Lighting solution Stadium Lighting solution

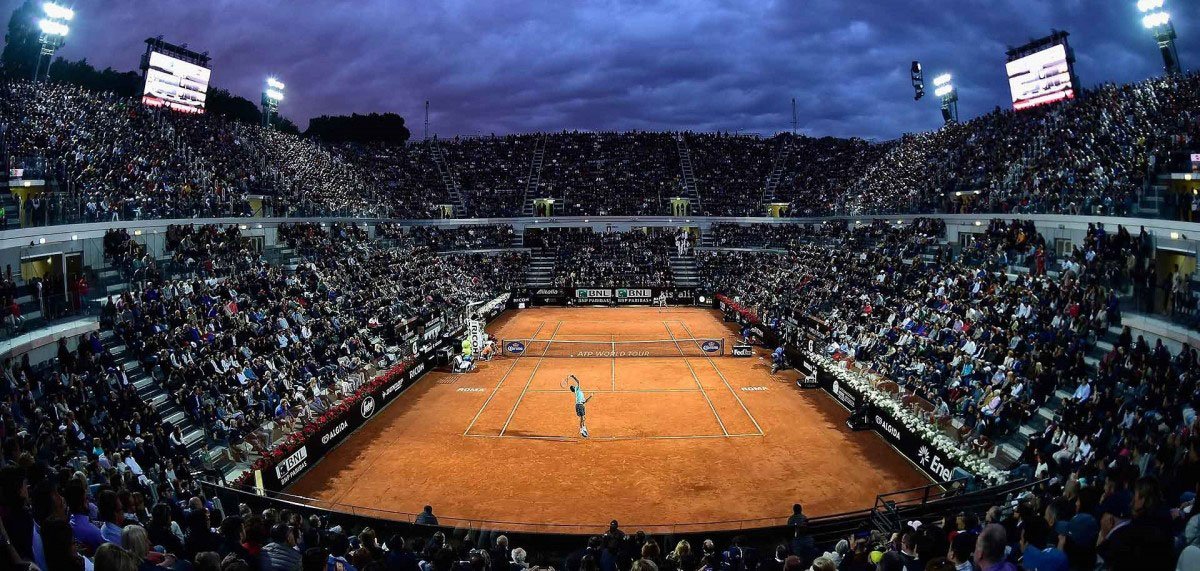

For outdoor football fields, tennis courts, golf courses, or other large stadiums, the main considerations are:

  • Large lighting area
  • Waterproof requirement
  • Easy replacement access

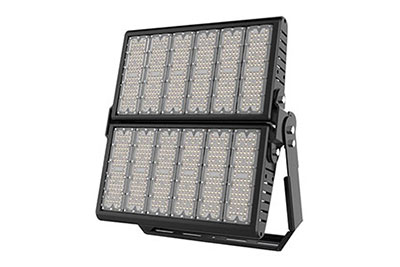

With these in mind, Mingfeng recommends FD series floodlights and LB series sports lighting products. FD series lights use CREE and Philips chips with lumen values up to 150lm/w. The light distribution angle can be 30°/60°/90°/60°x90°/80°X150°, and each LED module can be manually adjusted to better choose the appropriate lighting beam angle. Considering the safety of outdoor lamps, the FD series floodlight has a 20KV surge proof design. The waterproof rating can reach IP67, so that they can be used even on rainy days for extended use. Due to the excellent quality, they can have a service life up to 100000 hours.

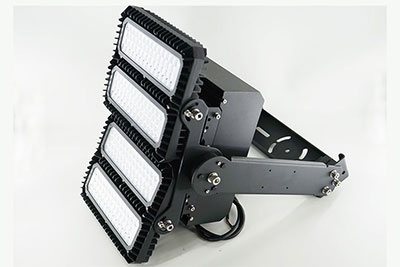

LB series stadium lights use Lumileds chips. With lumens up to 150lm/w and luminance wattage up to 1350W, they can meet the demanding needs of large space. Light distribution angles of LB series stadium lights can be 15°/25°/60°/130° x 40°/130°x 25°/110°. According to the requirement of the site, symmetrical and asymmetrical lighting angles are available. Also, the SDP can be 10KV or 20KV.

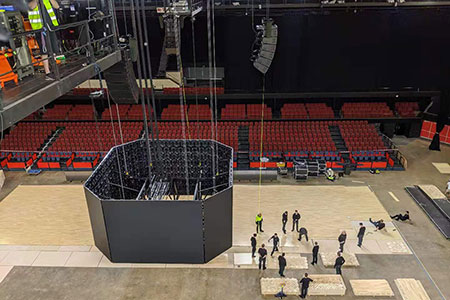

The indoor sport lighting
Stadium Lighting solution

Indoor sports stadiums feature relatively lower lighting requirements. We can recommend and design products based on the size, height, seating distribution and other factors of the stadium. Mingfeng FL and L series floodlights use Lumileds chips and Taiwan Mingwei power supply. The FL series has a power range of 80W to 600W at an angle of 30°/60°/90°/120°/60X135°/85X135°. While the L series has a power range of 75W to 1200W at asymmetrical angle of 110°/25°/60°/90°/130*80°. Therefore, whether these two series are used alone or in combination, they can meet the needs of any indoor sports stadium. The SPD options include 6KV/10KV/20KV. The waterproof rating can be up to IP66.

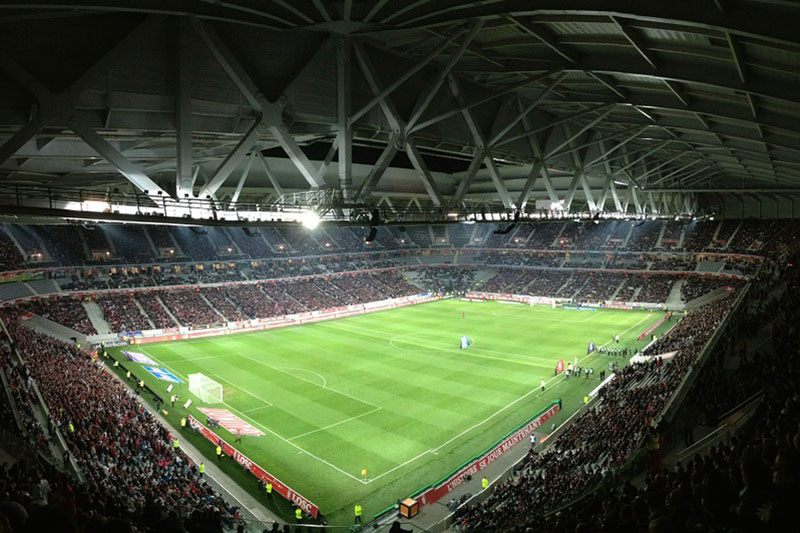

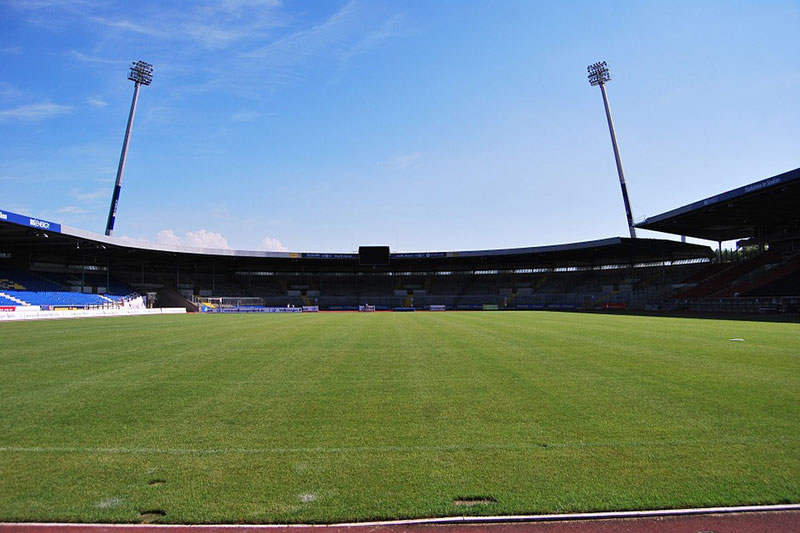

Application examples
  • Stadium Lighting solution
  • Stadium Lighting solution
  • Stadium Lighting solution

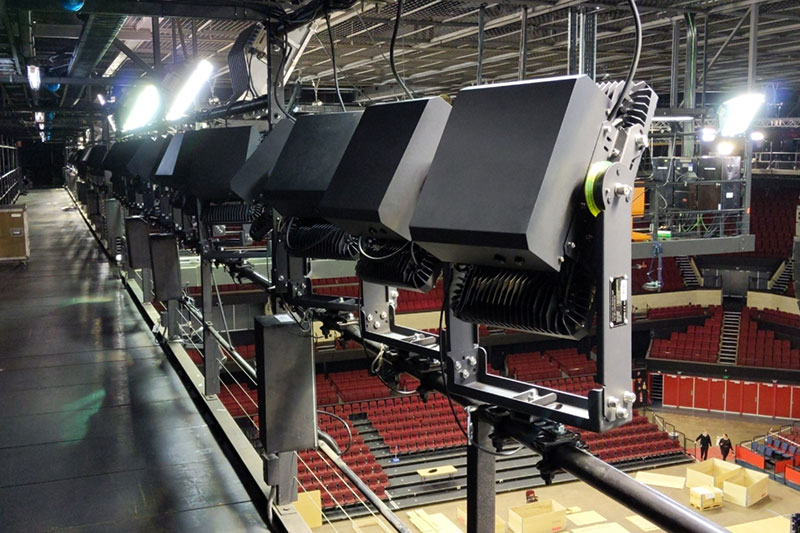

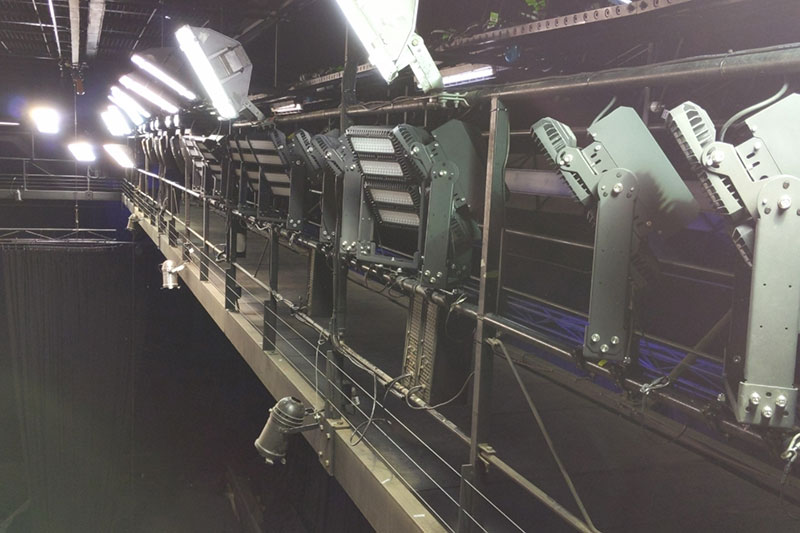

LB series lights in an Austria stadium

Tags
stadium lighting floodlight LED spotlight LED lighting
Recommended LED light products
    1. FD LED Stadium Lights
    2. FD LED Stadium Lights
    1. MF-FL LED Flood light
    2. MF-FL LED Flood light
    1. MF-L LED Flood light
    2. MF-L LED Flood light
    1. LB LED Stadium Lights
    2. LB LED Stadium Lights
