LED Cylinder Wall Mount Lighting

LED Cylinder Wall Mount Lighting
LED Cylinder Wall Mount Lighting LED Cylinder Wall Mount Lighting LED Cylinder Wall Mount Lighting
Inquiry

LED cylinder wall mount lights are easy to install no matter what orientation is needed, as illumination directions include uplight, downlight, or a combination of the two. Heat dissipation and illumination performances are outstanding due to the premium aluminum housing. The lights are also easily remote controlled, allowing them to be installed both indoors and outdoors, with a waterproof IP65 rating.

Specifications
  • Item No.: MF-BD-1x18W/ MF-BD-2x12W
  • LED Type : Epistar
  • LED Driver: CE marked Driver/Lifud
  • Luminous Efficacy : 100lm/w, 130lm/w, 150lm/w
  • Input Voltage: 120-277V
  • System Power Consumption: 12W, 2X12W
  • Power Frequency: 50~60Hz
  • CCT: 2700K, 3000K, 4000K, 5000K
  • Output Voltage: 28.8~48VDC
  • Beam Angle: 15° 24° 38° 110°
  • CRI: Ra70/Ra80/Ra90+
  • Power Efficiency: >90%
  • System Efficiency: >90%
  • Power Factor: >0.90
  • Fixture Material: Aluminum alloy + Glass
  • Painting: AkzoNobel powder coating
  • IP Rating: IP54
  • IK Rating: 07
PDF Download
  • MF-BD-1x18W
  • MF-BD-2x12W
Applications

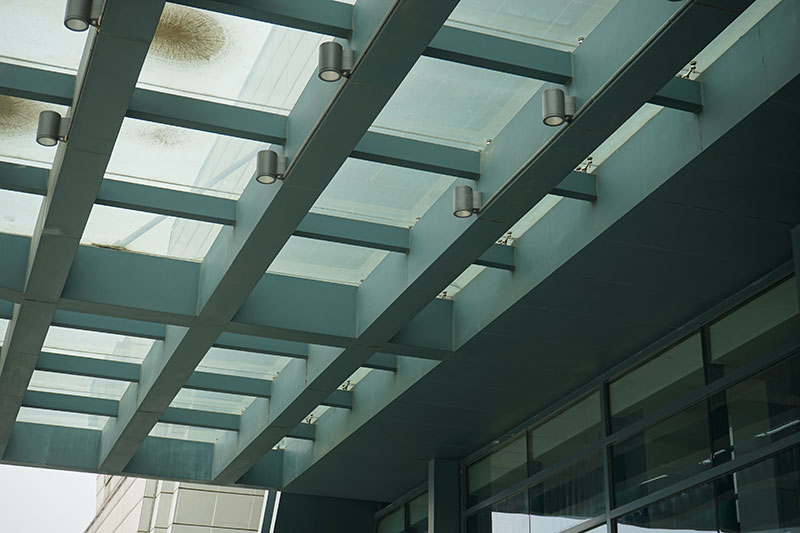

These lights are ideal for economical lighting solutions in commercial, medical, educational and retail locations.

  • LED Cylinder Wall Mount Lighting

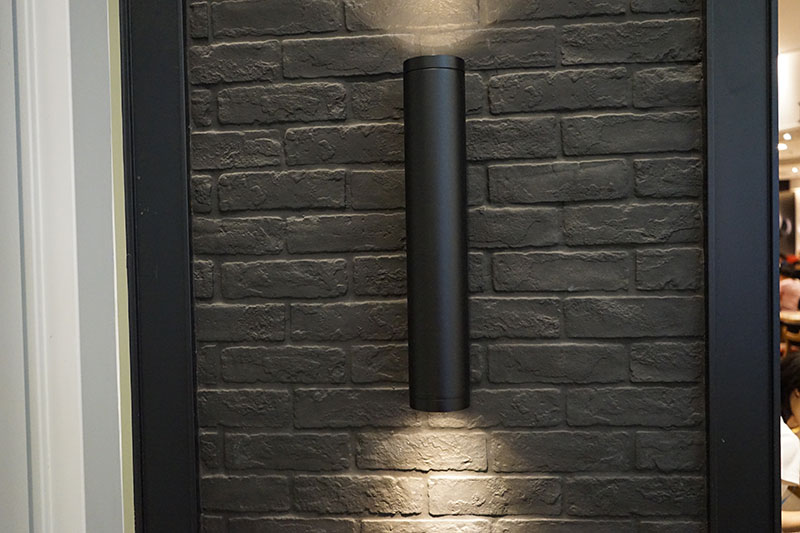

    Single Direction Wall Mount Light
  • LED Cylinder Wall Mount Lighting

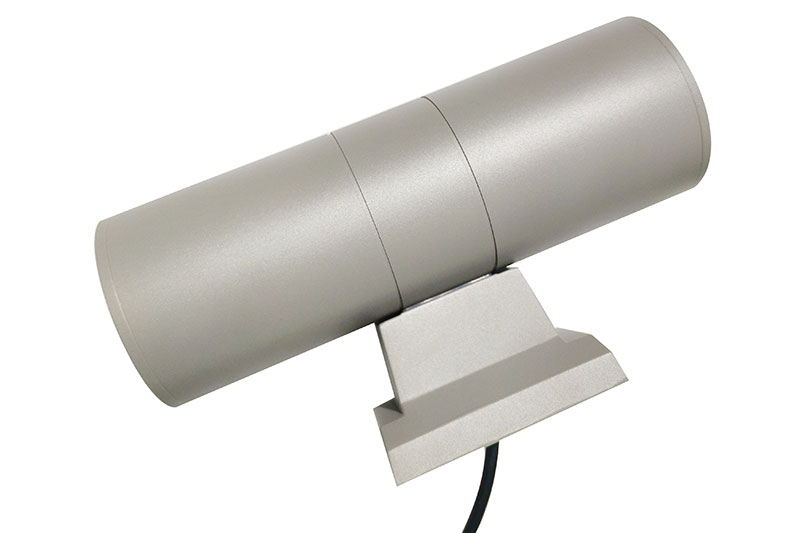

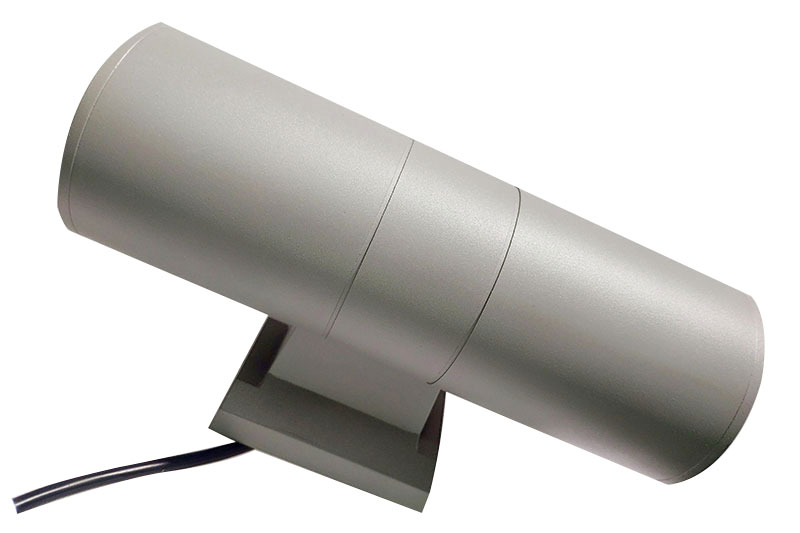

    Double Direction Wall Mount Light

We also provide engineers with LED lighting solutions to assist customers in solving any technical or production problems related to LED lights they may run into. Our strengths include:

Providing different options of power supply, lens, and chip combination methods to meet different lighting requirements.
Power Supply
  • LED Commercial Lights
  • LED Commercial Lights
  • LED Commercial Lights
  • LED Commercial Lights

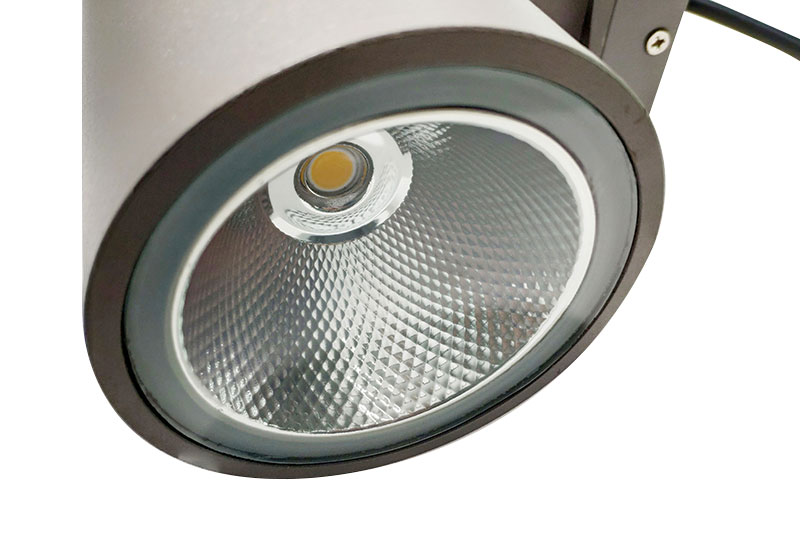

Lens and Chips
Remote controls are available. Each of our LED lighting systems can be controlled using your cell phone.
We employ lighting design engineers to assist customers in designing a lighting system layout. Provide us with site drawings or share the area and your lighting requirements, and our engineers will work with you to determine an ideal solution.
LED Commercial Lights
We are a factory enterprise working with long-term, prominent raw material suppliers. We offer the best factory pricing backed by our years of LED light manufacturing experience. We deliver samples within one week, and bulk goods within two weeks.
LED Commercial Lights
More
Tags
LED cylinder wall mount lighting single direction LED wall mount light double direction LED wall mount light
